Description

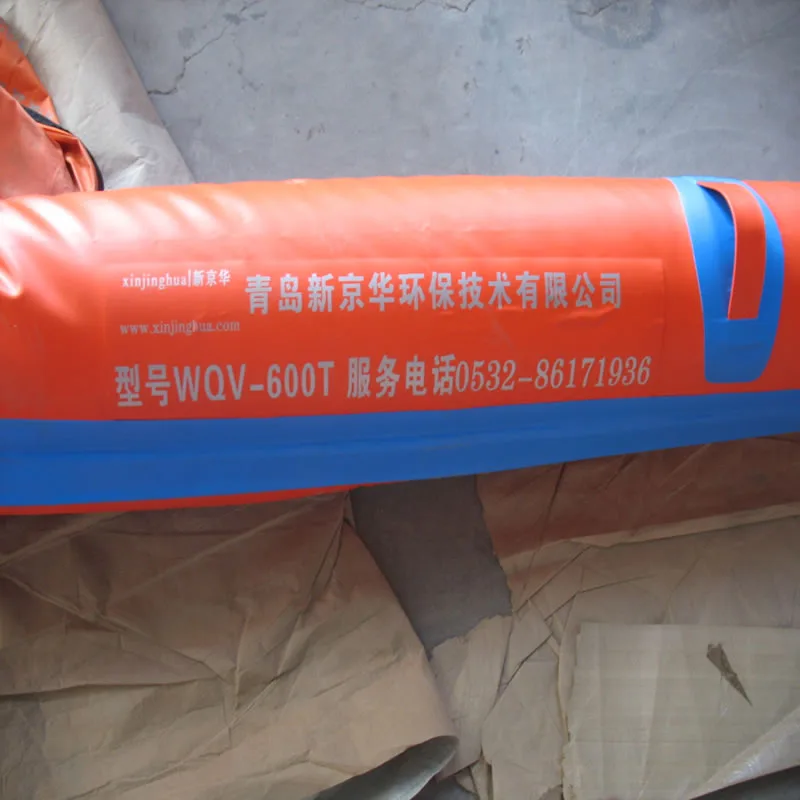

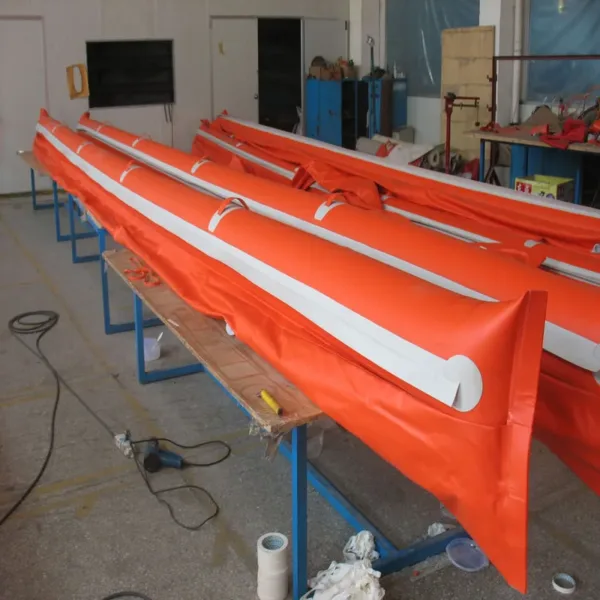

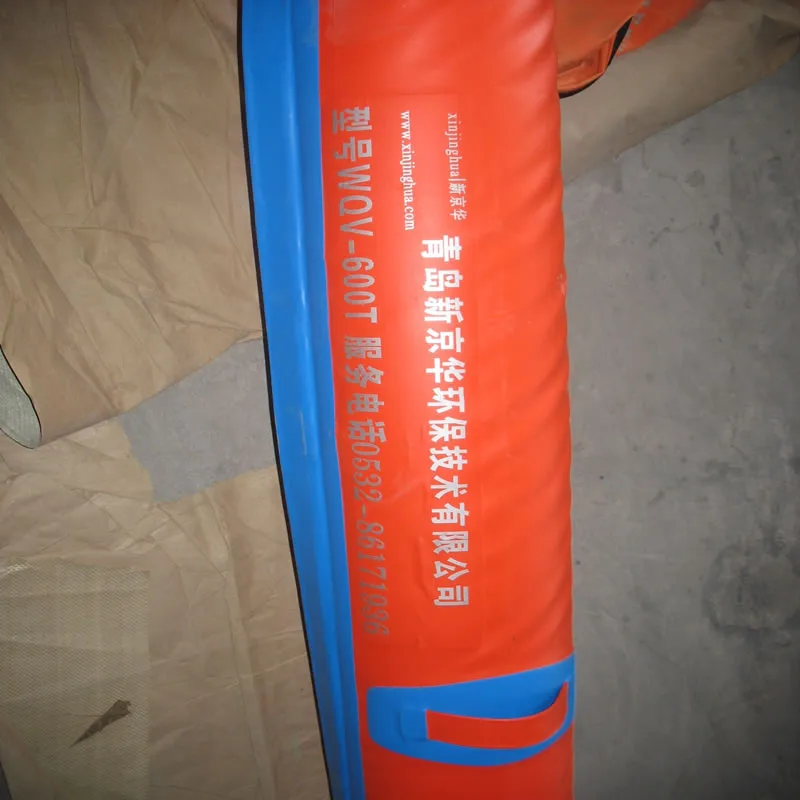

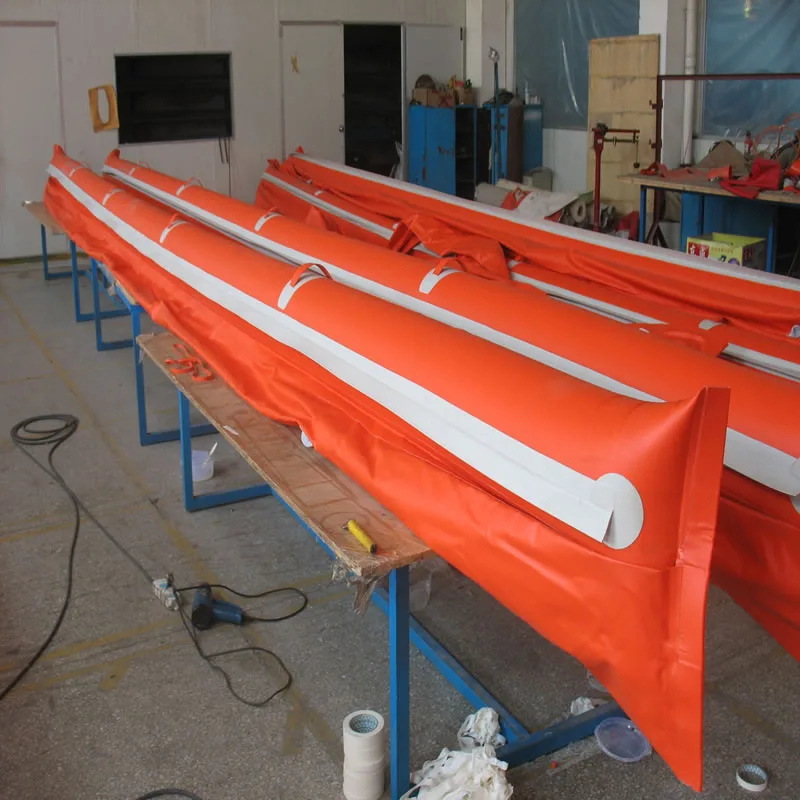

SHORELINE OIL BOOM
The XJHSHORELINE OIL BOOM is a new type of oil spill control equipment, which is used to control various viscosity oil spills washed ashore with tide fluctuation, and can also be used to control oil spill on land. It is mainly used to prevent oil spill from spilling on shore and land. It can be used for stationary deployment and also for makeshift deployment in response to an emergency.
FEATURES OF SHORELINE OIL BOOM

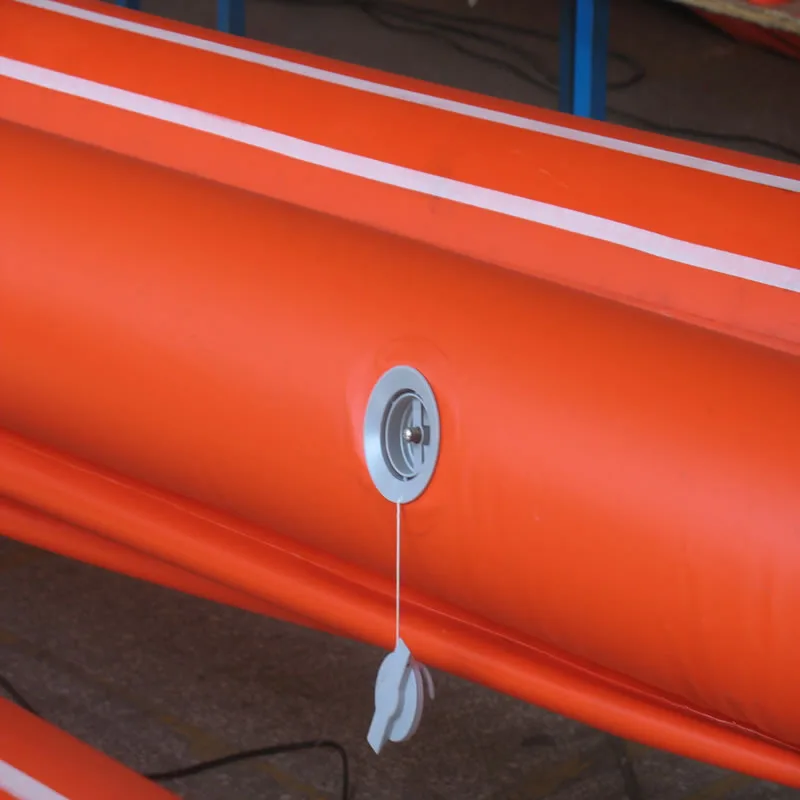

There are two water chambers in the lower part and an inflatable floating chamber in the upper part. The three bladders are arranged in the “Y” pattern and the boom has the excellent steadiness and wave-riding ability.
Anti-splash wings are set on both sides of the air chamber to prevent oil spilling out with
waves.
The main body of the shoreline boom is small, for high mobility and speedy deployment.
The boom uses the standard quick connector of oil booms and can be connected to other types of booms rapidly.
It can be used at the boundary between water and land with effective oil spill control effect.
TECHNICAL PARAMETER
| Model
Parameter |
WQA600 |
WQA700 |
WQA750 |
WQA800 |
WQA900 |
WQA1000 |
WQA1200 |
|||
| (mm )
Overall Height |
600 | 700 | 750 | 800 | 900 | 1000 | 1200 | |||
| (mm )
Freeboard |
200 | 240 | 250 | 280 | 300 | 350 | 440 | |||
| (mm )
Draft |
250 | 260 | 280 | 300 | 320 | 350 | 390 | |||
| (m )
Length per Section |
10 or 20 | |||||||||
| (KN) Total Tensile Strength | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||
| (℃) Work & Storage Temperature | – 10~60 | |||||||||
| (m)
Max. Resistance to Wave Height |
0.5 |
0.5 |
0.5 |
0.8 |
1.0 |
1.5 |
1.5 |
|||
| (m/s)
Max. Resistance to Wind Speed |
4 |
4 |
4 |
6 |
8 |
10 |
10 |
|||
Note: The technical parameter is subject to change without notice due to modification to the product and shall be confirmed by the manufacture and the customer.
