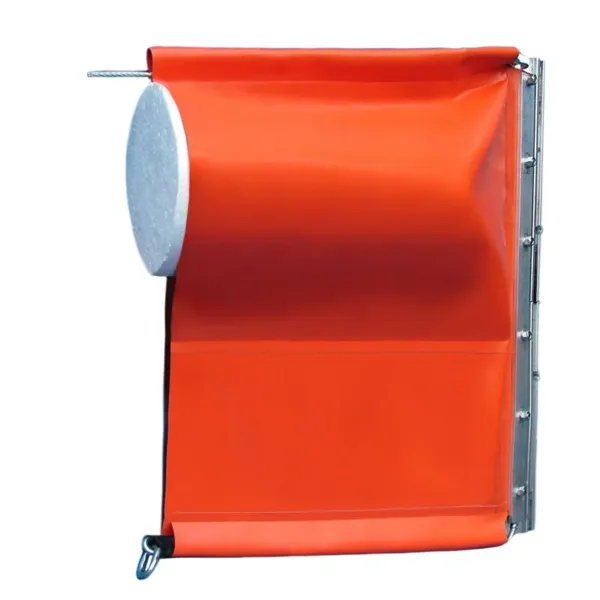

The solid float PVC boom(Conventional Boom) is particularly suitable for the long-term fixed deployment on waters.It has been widely used on rivers,harbors,lakes,offshore oil platforms and other waters due to its quick deployment and convenient operation.
Description
Features of Solid Float PVC Boom:
1．Fabricated with double-sided bright-colored high-strength PVC cloth with good resistance to oil,sunlight and a long service time.
2．Solid floats with greater reserve of buoyancy,good wave riding,vertical stability and oil retention ability.
3．Pulling cable,strengthening ribbons and tensile ballast chain on the upper,middle and lower parts of each boom body used as longitudial structural elements to withstand forces,thus increasing its tensile strength.
4．Smooth external surface,good for oil guiding and cleaning.
TECHNICAL DATA
| Parameter | WGV600 | WGV700 | WGV800 | WGV900 | WGV1000 | WGV1100 |
| Overall height(mm) | 600 | 700 | 800 | 900 | 1000 | 1100 |
| Freeboard(mm) | 180 | 260 | 250 | 330 | 325 | 320 |
| Draft(mm) | 320 | 400 | 410 | 540 | 650 | 770 |
| Standard length per section(m) | 20 or 15 or 10 | |||||
| Tensile strength(KN) | 20 | 25 | 30 | 30 | 35 | 35 |
| Buoyancy to weight ratio | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 |
| Weight(kg/m) | 3.7 | 6.2 | 7.1 | 8.4 | 9.3 | 9.5 |
| Max. wave height to withstand(m) | 0.5 | 1 | 1.5 | 1.8 | 2 | 2 |
| Max. wind speed to withstand(m/s) | 10 | 15 | 15 | 18 | 18 | 20 |
| Max. current speed to withstand(Kn) | 1 | 1.5 | 2 | 2 | 2.5 | 2.5 |

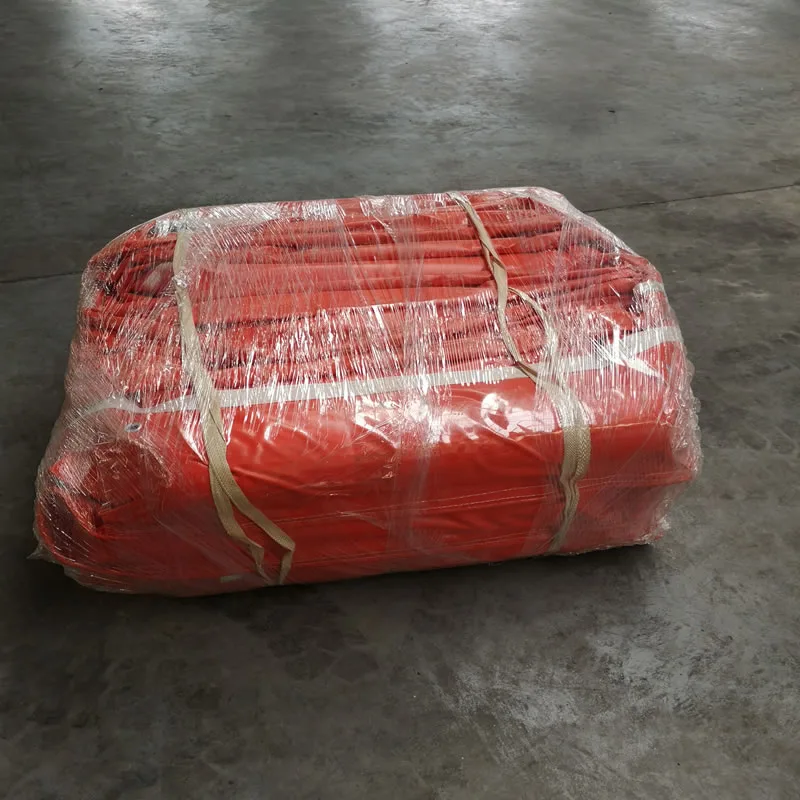

| Packing dimensions for 20m | 1×1×0.6 | 12×1×1 | 1.3×1.1×1.1 | 1.4×1.5×1.2 | 1.4×1.6×1.3 | 1.4×1.7×1.4 |
