The XJH Quick Deployment PVC oil boom is a kind of simple, economical and effective oil containment boom, widely used on waters of sea harbors, rivers, lakes and ponds for occasions where separation of oil from unpolluted waters is need.
Features of PVC fence:
◆ Bright orange-colored PVC coated high-strength fabric with better resistance to oil, seawater and ultraviolet radiation, special-shaped solid floats making their storage easier, structural elements on the upper, middle and lower parts of each fence body to withstand forces ensuring more reliable strength, elastic stiffeners between successive solid floats resulting in good stiffness to guarantee an effective draft;

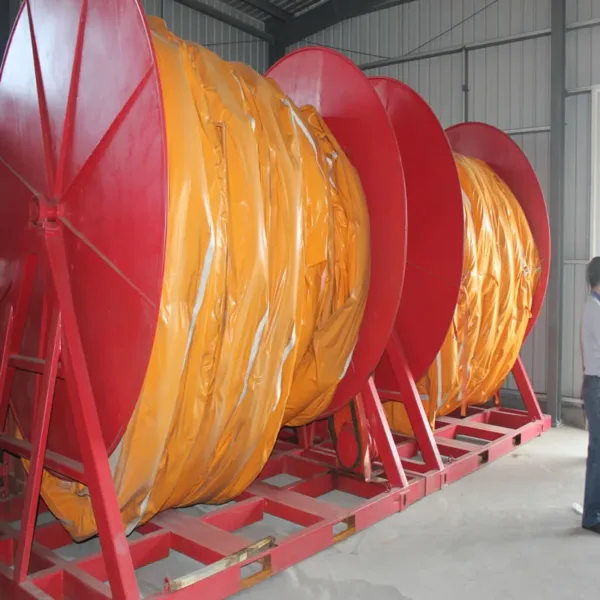

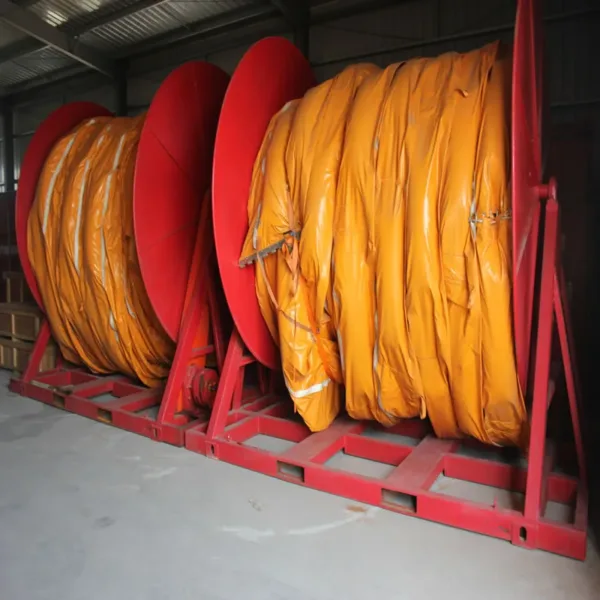

◆ Hydraulically driven fence reels or hanging storage racks are available for easier deployment and recovery.
| Parameter | 450 | 750 | 900 | 1100 |
| Overal height(mm) | 450 | 750 | 900 | 1100 |
| Freeboard(mm) | 150 | 250 | 300 | 400 |
| Draft(mm) | 300 | 500 | 600 | 700 |
| Standard length per section(m) | 5,15,20 | |||
| Tensile strength(KN) | 20 | 30 | 40 | 45 |
| Ballast | Block or chain | |||
| Boom Connections | Extruded aluminium – ASTM standard | |||
| Weight(kg/m) | 3.1 | 4.2 | 5.2 | 5.8 |
| Storage rack for 60m | 2.8×1.7×1.0 | 2.8×1.7×1.2 | 2.8×1.7×1.5 | 2.8×1.7×1.5 |
Qingdao Xinjinghua environmental Protection Technology Co., Ltd. is a professional manufacturer of oil spill response equipment and pollution remove products. Our company was founded in 2003.
