PVC OIL FENCE BOOM is a simple, economic and effective oil containment boom, which is widely used in seaports, rivers, lakes, ponds, oil-water separation tanks and other occasions.

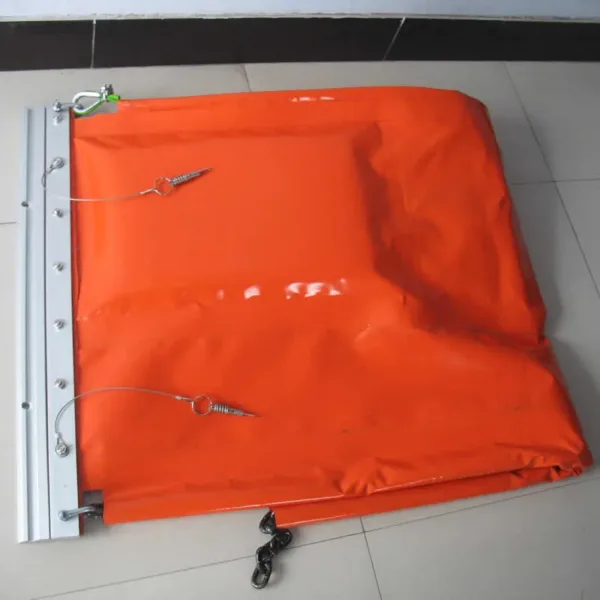

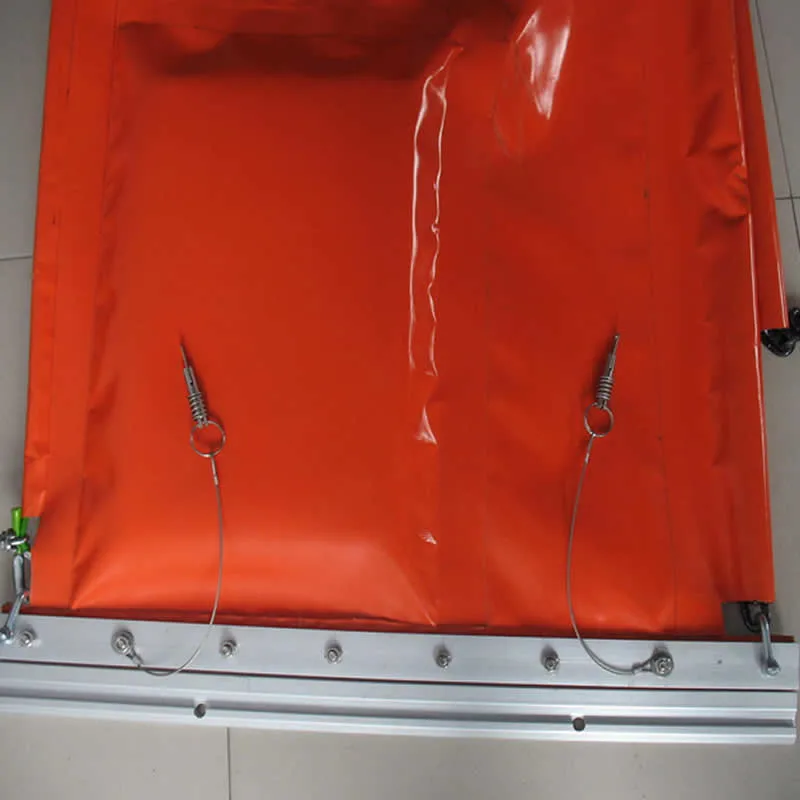

The XJH Harbor/Layflat boom is made of high strength fabric coated with bright orange PVC, which has the characteristics of oil resistance, seawater corrosion resistance and UV radiation resistance. The solid float in the unique shape makes it easier to store. There is a force-withstanding element each in the upper and lower parts of the boom body to ensure the strength. Elastic supporting bar is set between the solid floats to keep the oil fence straight and ensure the effective draft.
The deployment and retrieval of the PVC oil fence boom is very simple. The oil fence boom can be equipped with hydraulic drive reel frame or hanging storage rack.
| Model
Parameter |
XJHZ600 | XJHZ 800 | XJHZ 1000 | XJHZ 1100 |
| Overall Height(mm )
|
600 | 800 | 1000 | 1100 |
| Freeboard(mm )
|
200 | 300 | 350 | 400 |
| Draft (mm )
|
350 | 500 | 600 | 700 |
| Length per Section(m )
|
20 | |||
|
Max. Working Tensile Strength(KN)
|
20 | 25 | 30 | 35 |
| Max Resistance to Wave Height(m) | 0.2 | 0.3 | 0.4 | 0.5 |
| Max. Resistance to Wind Speed(m/s) | 0.2 | 0.3 | 0.4 | 0.5 |
| Max. Resistance to Current (Kn)
Speed |
0.2 | 0.3 | 0.4 | 0.5 |
| Ballast | Block or Ballast Chain | |||
Note: The technical parameter is subject to change without notice due to modification to the product and shall be confirmed by the manufacture and the customer.
