Disk&Brush oil Skimmer:

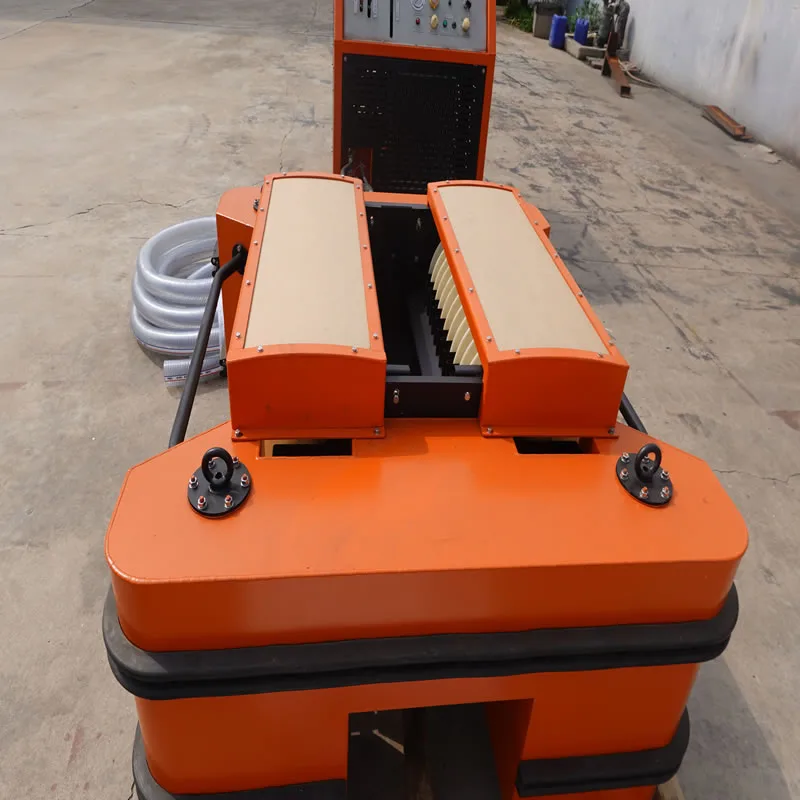

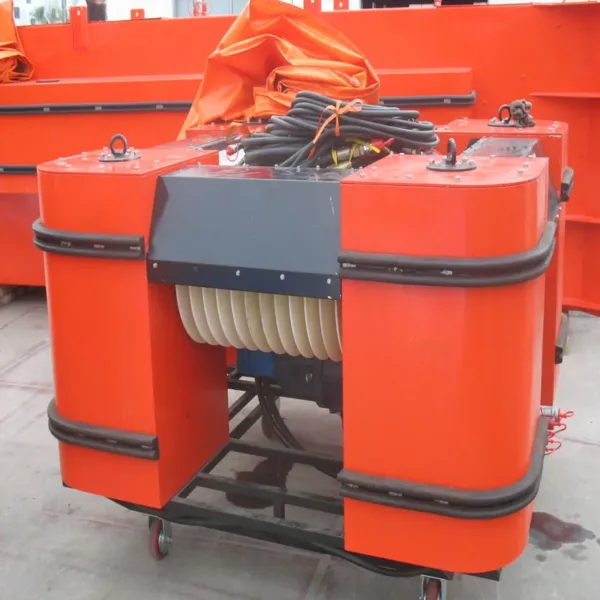

The XJH Disk&Brush skimmer is a durable and highly efficient oil recovery device.It is composed mainly of a hydraulic power pack,hydraulic oil piping and skimmer head floating on the water surface.Different types of discs shall be chosen for spilled oil with different viscosity.It is widely used for recovery of spilled oil on seas,lakes and ponds.
Features of Disk&Brush Skimmer:
1．The XJH Disk&Brush skimmer head floating on the water surface is made of corrosion-resistant glass fiber reinforced plastics,stainless steel or marine grade alumimum alloy.The skimmer can be used for recovery of spilled oil on the surface of seawater or fresh water and its robust and durable structure is best suited for applications on open seas where rough sea state may occur.Moreover, its floats are foam filled,resulting in a dual buoyancy configuration.
2．High-viscosity crude oil,medium to low-viscosity lubricant,fuel,vegetable oil and be recovered.
3． Stepless speed regulation of discs according to in-situ oil spill conditions can guarantee a greater oil to water ratio for recovery.
TECHNICAL DATA
| Parameter | ZSY5 | ZSY10 | ZSY20 | ZSY30 | ZSY50 |
| Recovery capability(M) | 5 | 10 | 20 | 30 | 50 |
| Driving power(KW) | 3~4 | 4~5 | 5.5 | 14 | 28 |
| Type of pump | Self-sucking pump(high-viscosity oil pump) | ||||
| Weight of power pack(Kg) | 110 | 140 | 160 | 200 | 320 |
| Diameter of oil discharge hose | ￠50 | ￠50 | ￠65 | ￠65 | ￠100 |
